主要性能规范Chief property and specification
|
型号 Type |
公称压力 PN（MPa） N |
试验压力Ps（MPa）Test pressure |
适用温度（℃） Applicable Temperature |
适用介质 Applicable Medium |
||
|
强度strength |
密封（液）sea（liquid） |
密封（气）sea（liquid） |
||||
|
BQ41F-16C |
1.6 |
2.4 |
1.76 |
0.6 |
-20-150 |
水、油品 Water、Oil |
|
BQ41F-16P |
1.6 |
2.4 |
1.76 |
0.6 |
-20-150 |
硝酸Nitric Acid |
|
BQ41F-16R |
1.6 |
2.4 |
1.76 |
0.6 |
-20-150 |
醋酸Nitric Acid |
|
BQ41F-20 |
2.0 |
3.0 |
2.2 |
0.6 |
-20-150 |
水、油品 Water、Oil |
|
BQ41F-20P |
2.0 |
3.0 |
2.2 |
0.6 |
-20-150 |
硝酸Nitric Acid |
|
BQ41F-20R |
2.0 |
3.0 |
2.2 |
0.6 |
-20-150 |
醋酸Nitric Acid |
主要零件材料Mater for main parts
|
零件名称Part name |
阀体Body |
阀芯、阀杆Didc Stem |
密封圈Seal circle |
|
F F BQ41 -16. BQ41 -20 PPL PPL |
WCB |
2Cr13 |
聚四氟乙烯或 增强聚四氟乙烯 Polytetrafluoroethylene or Vuilrk Polytetrafluo- roethylene |
|
F F BQ41 -16P. BQ41 -20P PPL PPL |
ZG1Cr18Ni9Ti |
1Cr18Ni9Ti |
|
|
F F BQ41 -16R. BQ41 -20R PPL PPL |
ZGOCr18Ni12Mo2Ti |
0Cr18Ni12Mo2Ti |
BQ41型夹套保温球阀Jacket Ball Valve

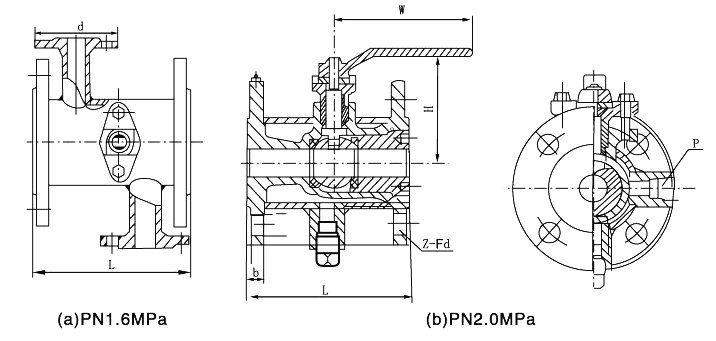

PN1.6MPa主要连接尺寸及重量Main Connection Dimensions And Weight 150LB主要连接尺寸及重量Main Connection Dimensions And Weight
|
in |
DN |
L(mm) |
H(mm) |
W(mm) |
P(in) |
法兰 (DN) |
重量 Wight(kg) |
|
in |
DN |
L(mm) |
H(mm) |
W(mm) |
P(in) |
法兰 (DN) |
重量 Wight(kg) |
|
3/4″ |
20 |
117 |
101 |
160 |
3/4″ |
40 |
4 |
3/4″ |
20 |
117 |
101 |
160 |
3/4″ |
40 |
4 |
|
|
1″ |
25 |
127 |
106 |
160 |
3/4″ |
50 |
6.5 |
1″ |
25 |
127 |
106 |
160 |
3/4″ |
50 |
6.5 |
|
|
11/2″ |
40 |
165 |
125 |
230 |
3/4″ |
65 |
9 |
11/2″ |
40 |
165 |
125 |
230 |
3/4″ |
65 |
9 |
|
|
2″ |
50 |
178 |
135 |
230 |
3/4″ |
80 |
13 |
2″ |
50 |
178 |
135 |
230 |
3/4″ |
80 |
13 |
|
|
3″ |
80 |
229 |
193 |
400 |
3/4″ |
150 |
23 |
3″ |
80 |
229 |
193 |
400 |
3/4″ |
150 |
23 |
|
|
4″ |
100 |
254 |
265 |
650 |
3/4″ |
200 |
38 |
4″ |
100 |
254 |
265 |
650 |
3/4″ |
200 |
38 |
|
|
6″ |
150 |
292 |
355 |
1050 |
3/4″ |
250 |
98 |
6″ |
150 |
292 |
355 |
1050 |
3/4″ |
250 |
98 |
|
|
8″ |
200 |
330 |
410 |
1050 |
1″ |
350 |
168 |
8″ |
200 |
330 |
410 |
1050 |
1″ |
350 |
168 |
PN1.6MPa主要连接尺寸及重量Main Connection Dimensions And Weight 3000LB主要连接尺寸及重量Main Connection Dimensions And Weight
|
3/4″ |
20 |
117 |
101 |
160 |
3/4″ |
40 |
4 |
|
3/4″ |
20 |
117 |
101 |
160 |
3/4″ |
11/2″ |
5 |
|
1″ |
25 |
127 |
106 |
160 |
3/4″ |
50 |
6.5 |
1″ |
25 |
127 |
106 |
160 |
3/4″ |
2″ |
7.5 |
|
|
11/2″ |
40 |
165 |
125 |
230 |
3/4″ |
65 |
9 |
11/2″ |
40 |
165 |
125 |
230 |
3/4″ |
21/2″ |
13 |
|
|
2″ |
50 |
178 |
135 |
230 |
3/4″ |
80 |
13 |
2″ |
50 |
178 |
135 |
230 |
3/4″ |
3″ |
18 |
|
|
3″ |
80 |
229 |
193 |
400 |
3/4″ |
150 |
23 |
3″ |
80 |
229 |
193 |
400 |
3/4″ |
6″ |
35 |
|
|
4″ |
100 |
254 |
265 |
650 |
3/4″ |
200 |
38 |
4″ |
100 |
254 |
265 |
650 |
3/4″ |
8″ |
61 |
|
|
6″ |
150 |
292 |
355 |
1050 |
3/4″ |
250 |
98 |
6″ |
150 |
292 |
355 |
1050 |
3/4″ |
10″ |
124 |
|
|
8″ |
200 |
330 |
410 |
1050 |
1″ |
350 |
168 |
8″ |
200 |
330 |
410 |
1050 |
1″ |
14″ |
208 |
