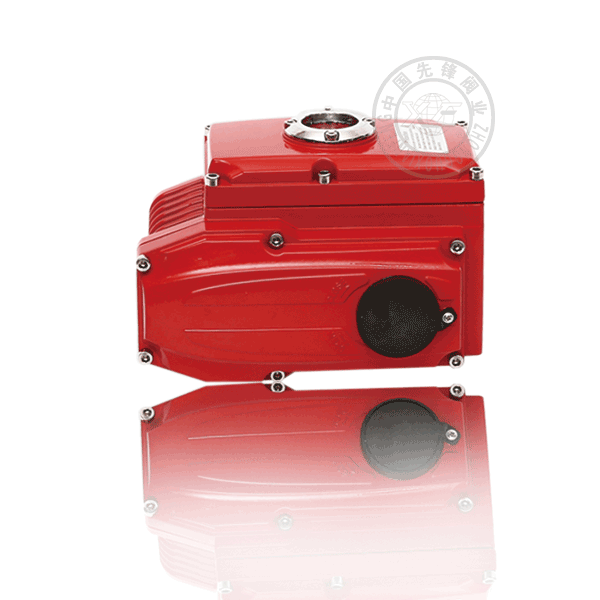

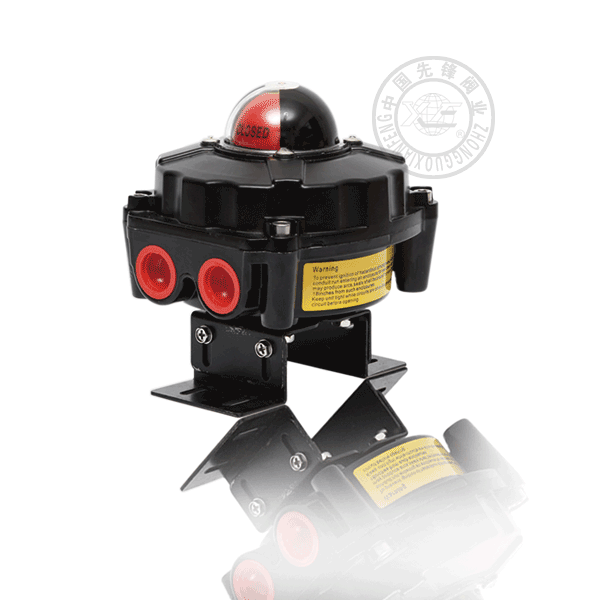

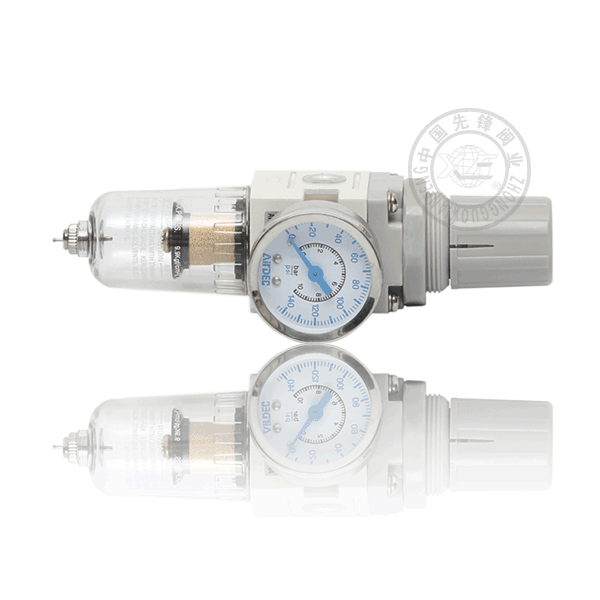

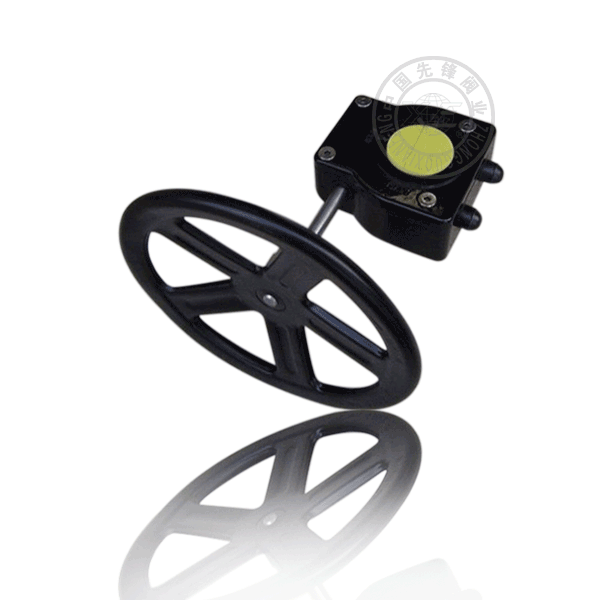

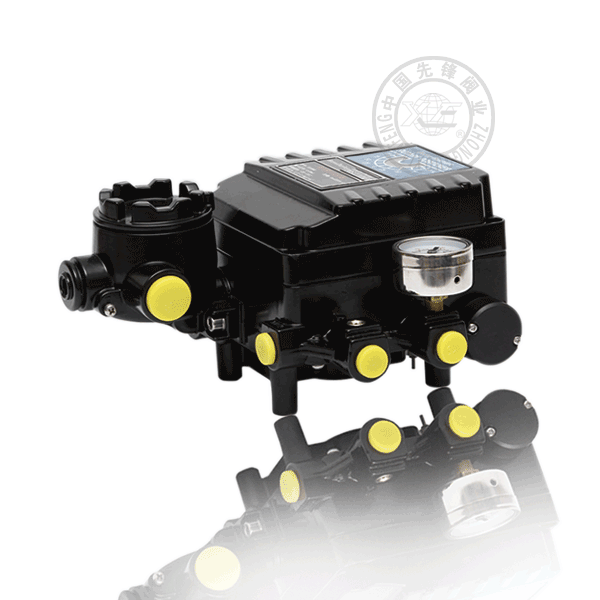

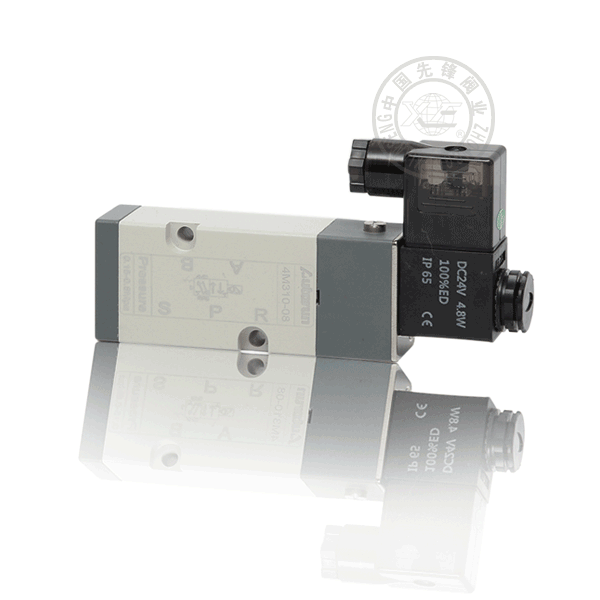

可选配件：
概述
三通球阀系列对介质流向的不同切换要求可分为Q44L型与Q45T型，
如图A．L型可实现对介质流向进行切换，亦可使相互垂直的两个通道连通或关闭。
如图B．T型可实现对介质的分流或混流，不仅可以实现介质流向的切换，
也可使三个通道互相连通，还可以关闭任一通道，连通另外两个通道。
本阀门具有结构紧凑．造形美观．密封性能好等特点。
Summary
According to different switching requirements to the flow
direction of medium, three-way ball valve series can be divi-ded into two types:Q44L
and Q457. As shown in Fig. A, L-type cannot oniy switch the flow direction of medium
but o-nly connect or close two orthogonal pipes. As shown in Fig.B, T type cannot only
switch the flow direction of medium, bu-t also connect three pipes with each other,
or close any one of three ways and connect the other two pipes. This valve ha-s such
advantages as compact structu re, beautiful outline, a-nd good sealing performance, etc

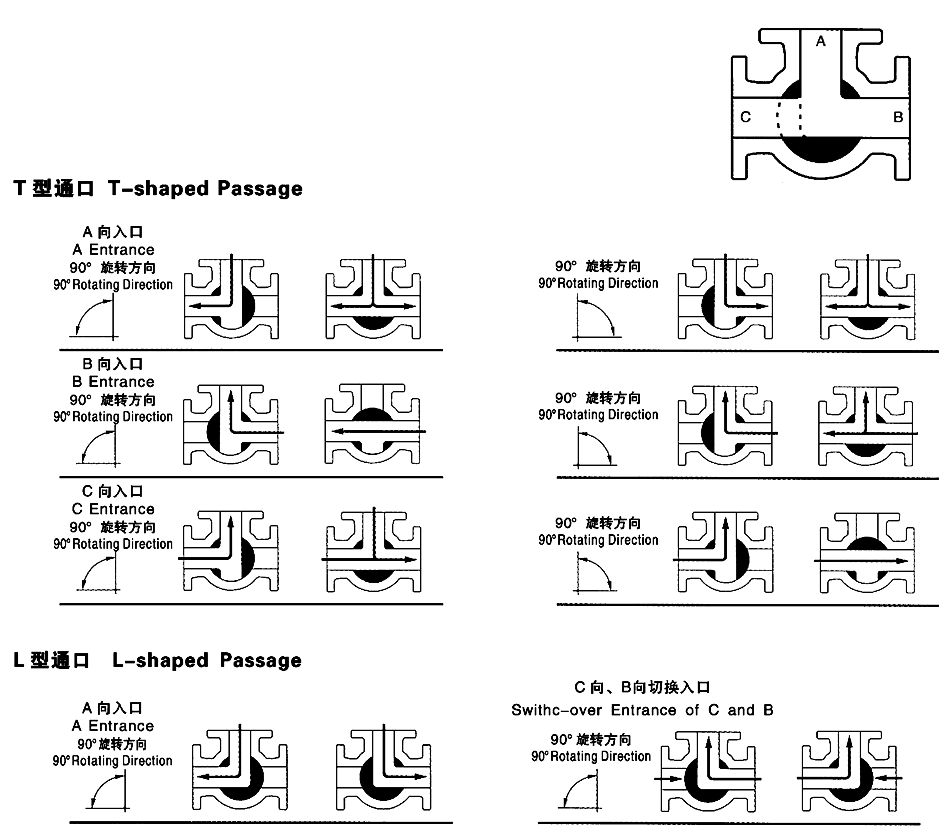

三通球阀介质流向示意图
Sketch of Medium Flow-direction of Three-way BallValve
三通球阀用于分流或汇台流通，是具有=面或四面阀座的多通口球蠲．任一通口可用作入
口而无泄漏。三通既可制成L型通口也可制成T型通口。
Three-way ball valve is used for diffluence or confHlue.t circulalio.
With two-sid. or four-sida valve base embodying multiple channels All
the channals can be used as e.t,ance. with no leakage The three-way
can be made to L-shaped channel or T-shaped channel
主要性能规范 Main Specifications
试验压力（MPa）
Testpressure
公称压力PN Nonial pressure（MPa）
1.6
2.5
壳体强度试验
Shellstrength test
2.4
3.75
密封试验（液）
Seal test
1.76
2.75
|
|
主要零件材料Material of Main Parts
|
|||||||||||||||||||||||||||||||||||||

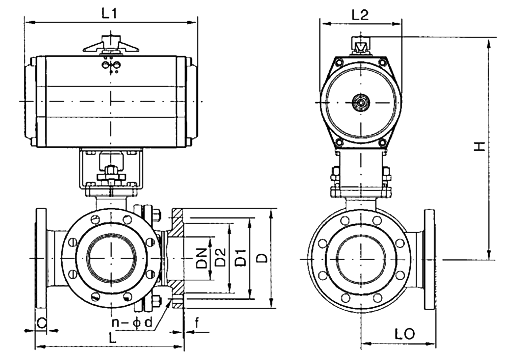

主要外形及连接法兰尺寸Q64（4、5）（F、N、P）-16 Mani Outline and Connecting Flange Size
|
公称通径 Nominal size |
外形尺寸Outline Size |
连接法兰尺寸Connecting Flange Size |
|
执行器型号* Actuator Model |
|||||||||
|
mm |
in |
L |
L0 |
L1 |
L2 |
H |
D |
D1 |
D2 |
C |
f |
n-φd |
|
|
15 |
1/2 |
150 |
75 |
140/178 |
62/75 |
185/191 |
95 |
65 |
46 |
14 |
2 |
4-φ14 |
GTD52/GTE65 |
|
20 |
3/4 |
150 |
75 |
164/214 |
75/91 |
197/225 |
105 |
75 |
56 |
16 |
2 |
4-φ14 |
GTD65/GTE80 |
|
25 |
1 |
180 |
90 |
164/214 |
75/91 |
199/227 |
115 |
85 |
65 |
16 |
2 |
4-φ14 |
GTD65/GTE80 |
|
32 |
11/4 |
200 |
100 |
190/295 |
91/112 |
240/266 |
140 |
100 |
76 |
18 |
3 |
4-φ18 |
GTD80/GTE100 |
|
40 |
11/2 |
220 |
110 |
210/295 |
101/112 |
255/271 |
150 |
110 |
84 |
18 |
3 |
4-φ18 |
GTD90/GTE100 |
|
50 |
2 |
240 |
120 |
247/340 |
112/127 |
286/307 |
165 |
125 |
99 |
20 |
3 |
4-φ18 |
GTD100/GTE115 |
|
65 |
21/2 |
260 |
130 |
276/398 |
127/139 |
330/335 |
185 |
145 |
118 |
20 |
3 |
4-φ18 |
GTD115/GTE125 |
|
80 |
3 |
280 |
140 |
308/438 |
139/159 |
349/383 |
200 |
160 |
132 |
20 |
3 |
8-φ18 |
GTD125/GTE145 |
|
100 |
4 |
320 |
160 |
348/562 |
159/206 |
421/4874 |
220 |
180 |
156 |
22 |
3 |
8-φ18 |
GTD145/GTE190 |
|
125 |
5 |
380 |
190 |
432/724 |
176/228 |
485/557 |
250 |
210 |
184 |
22 |
3 |
8-φ18 |
GTD160/GTE210 |
|
150 |
6 |
440 |
220 |
524/928 |
228/275 |
582/629 |
285 |
240 |
211 |
24 |
3 |
8-φ22 |
GTD210/GTE255 |
|
200 |
8 |
550 |
275 |
648/1033 |
275/324 |
702/750 |
340 |
295 |
266 |
24 |
3 |
12-φ22 |
GTD255/GTE300 |
主要外形及连接法兰尺寸Q64（4、5）（F、N、P）-25 Mani Outline and Connecting Flange Size
|
公称通径 Nominal size |
外形尺寸Outline Size |
连接法兰尺寸Connecting Flange Size |
|
执行器型号* Actuator Model |
|||||||||
|
mm |
in |
L |
L0 |
L1 |
L2 |
H |
D |
D1 |
D2 |
C |
f |
n-φd |
|
|
15 |
1/2 |
150 |
75 |
164/214 |
75/91 |
191/219 |
95 |
65 |
46 |
14 |
2 |
4-φ14 |
GTD65/GTE80 |
|
20 |
3/4 |
150 |
75 |
164/214 |
75/91 |
197/225 |
105 |
75 |
56 |
16 |
2 |
4-φ14 |
GTD65/GTE80 |
|
25 |
1 |
180 |
90 |
190/246 |
91/101 |
227/237 |
115 |
85 |
65 |
16 |
3 |
4-φ14 |
GTD80/GTE90 |
|
32 |
11/4 |
200 |
100 |
210/295 |
101/112 |
256/266 |
140 |
100 |
76 |
18 |
3 |
4-φ18 |
GTD90/GTE100 |
|
40 |
11/2 |
220 |
110 |
247/340 |
112/127 |
271/292 |
150 |
110 |
84 |
18 |
3 |
4-φ18 |
GTD100/GTE115 |
|
50 |
2 |
240 |
120 |
276/398 |
127/139 |
307/312 |
165 |
125 |
99 |
20 |
3 |
4-φ18 |
GTD115/GTE125 |
|
65 |
21/2 |
260 |
130 |
308/438 |
139/159 |
335/370 |
185 |
145 |
118 |
22 |
3 |
4-φ18 |
GTD125/GTE145 |
|
80 |
3 |
280 |
140 |
348/562 |
159/176 |
383/400 |
200 |
160 |
132 |
24 |
3 |
8-φ18 |
GTD145/GTE160 |
|
100 |
4 |
320 |
160 |
432/724 |
176/228 |
438/510 |
235 |
190 |
156 |
24 |
3 |
8-φ22 |
GTD160/GTE210 |
|
125 |
5 |
380 |
190 |
524/928 |
228/275 |
557/604 |
270 |
220 |
184 |
26 |
3 |
8-φ26 |
GTD210/GTE255 |
|
150 |
6 |
440 |
220 |
648/1033 |
275/324 |
629/677 |
300 |
250 |
211 |
28 |
3 |
8-φ26 |
GTD255/GTE300 |
|
200 |
8 |
550 |
275 |
715/1129 |
324/380 |
750/808 |
360 |
310 |
274 |
30 |
3 |
12-φ26 |
GTD300/GTE350 |
※注：系列球阀结构长度及连接法兰尺寸可根据用户要求设计制造。
※注：数据xxx，xxx分别是气动执行器双作用式，单作用式（弹簧复位）。
※洼：*根据不同阀门扭矩、使用介质适配的执行器型号可能有所不同．相关尺寸随之变化。
Note：The structural length and connecting flange size of ball valve series can be designed and manufactured users'
requirements.
Note：Data x x x/x x x represent respectiwly the double-acting/single-acting type(spring reposition) of pneumatic actuator
Note：*The relative sizes are subject to change responding to the difference in valve to torque, medium and actuator model.
